Remote control scheme
Intelligent circuit breaker remote monitoring solution
business background
At present, the demand for electricity in the society is increasing, and higher requirements are placed on the quality of electricity and power management. It is one of the important work contents of energy (power consumption) management to learn about grid data in real time and transmit it in real time.
Industry Status
The traditional power distribution operation management relies on manpower inspection and maintenance, which is time-consuming and labor-intensive, has low work efficiency, and lacks real-time performance. Therefore, in order to solve this problem, a monitoring method with strong intelligence, high accuracy and good real-time performance is needed, and the working state of the power distribution equipment is monitored and managed 24 hours a day.
Brief description of the plan
The intelligent circuit breaker remote monitoring solution adopts the Internet of Things technology to realize the rapid transmission of power distribution data through the link of intelligent circuit breaker, serial port server and cloud platform, and escort the smart grid unattended project.

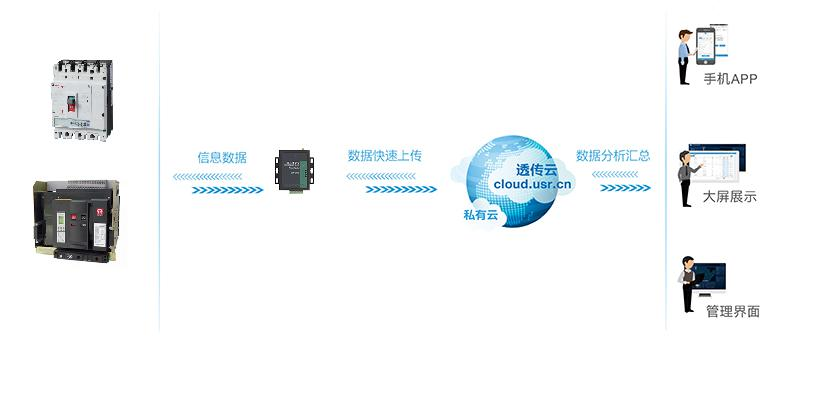

Topographic map
plan description
1. The intelligent circuit breaker will quickly upload the information such as electricity data to the cloud server through RS485 - 4G or wifi DTU, and transmit it to the PC and mobile terminal in real time;
2. The monitoring large screen set by the monitoring center can display the dynamic data in front in real time, which is convenient for the operator to know the operation details of the equipment in time;
3. The monitoring platform can provide early warning solutions by analyzing the monitoring data, so as to facilitate the timely adoption of safety measures, thereby reducing the possibility of line accidents;
4. Realize user energy management through analysis of historical data.
Program advantage
1. Support full Netcom network standard, flexible interface, rich network, high-speed data transmission through 4G network, and also can use WIFI and other transmission methods;
2. Support standard RS485/232 serial port, which is convenient for distribution network integration and large-scale networking;
3. Support data transmission;
4. Effectively reduce deployment costs and solve wiring construction problems;
5, good real-time, no need to be on duty;
6, convenient configuration management, flexible and convenient to set up;
7, you can set up a private cloud service, you can develop configuration applications, special application software.

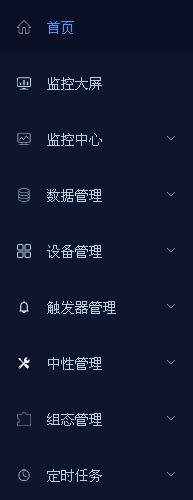

管理菜单

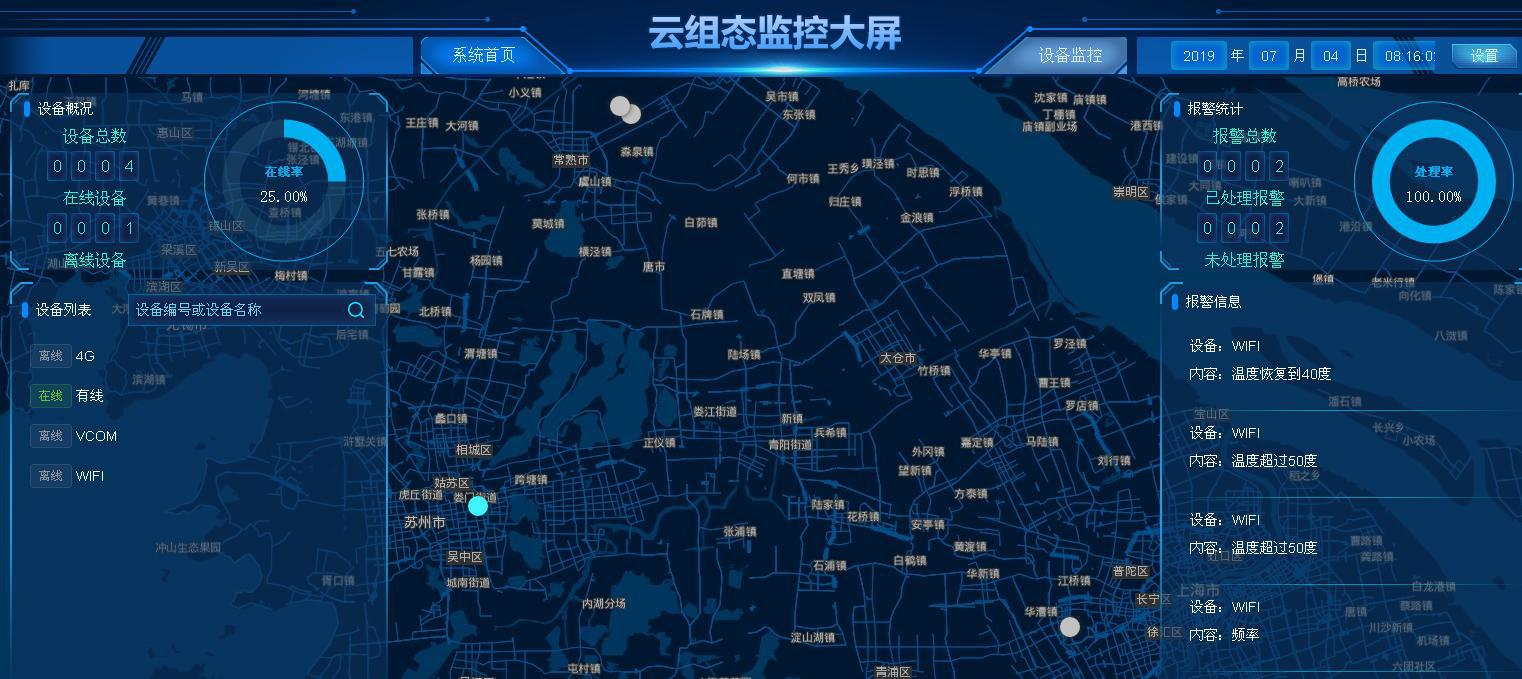

监控大屏

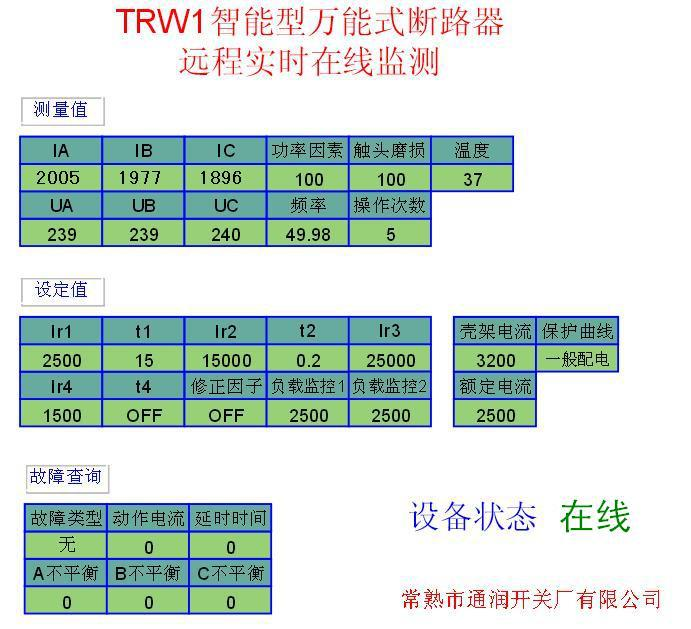

TRW1 组态应用
|
